Wagon Type Selection

for Private Owner Mineral Wagons Decals

This page shows the range of wagon types I currently have available for substituting for the original Private Owner mineral wagons my decals are designed to fit. To use it to select a particular wagon type, please click on the button below the relevant illustration. This will take you back to the main PO wagons decals ordering page while setting the substitute wagon type to that you have selected.

To return to that page without selecting a wagon type, please click here:

Return to Decals Page

If you want decals to fit a wagon type that is not listed here, please contact me with full details of the wagon type (ideally including a clear photo and/or drawing) and I will see what I can do to add it to those below, probably at no extra charge to you beyond my standard decals cost.

Clicking on a wagon image will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up). The same browser tab/window will be used for all images you click on.

Filter and Sort Wagons

To assist with your choice, and restrict the number of wagon types shown below, you are welcome to use the filter options below to only display wagons that match certain characteristics, and then sort the results into an order based on other selected characteristics.

Within a filter specification, the various options are combined as "OR". That is, the more options you select, the more wagons will be displayed. The "Any" option causes all of the other options for that filter to be ignored, and has to be deselected for the other options to take effect. Where there is an "other" option, that means any value other than those for which there are specific options.

However, the different filters are combined as "AND". That is, to be displayed a wagon has to match all of the different filters.

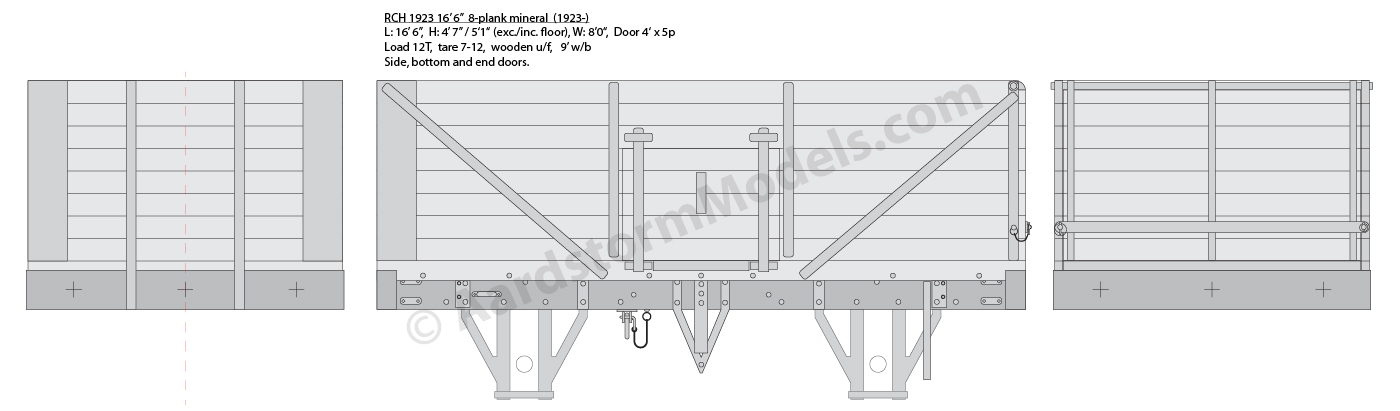

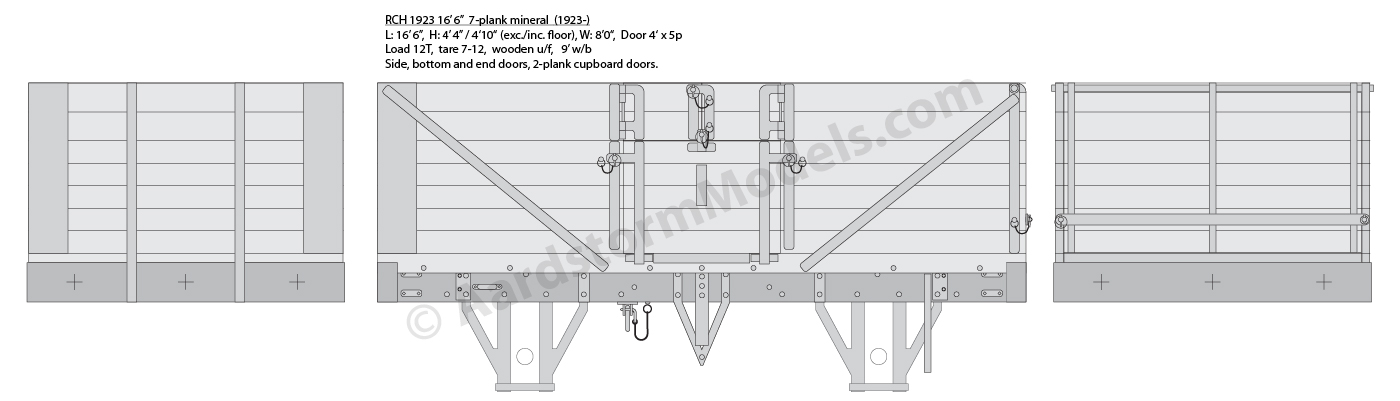

The RCH wasn't a wagon builder, but it did produce standard designs that many wagon builders used to build wagons, so I've included it as a separate option for the wagon builder filter below. The later, 1923, specification was generally followed pretty closely by builders, but with the earlier 1903/6 specification there was more variation between builders, particularly in wagon height and length, the RCH specification setting the maximum dimensions. For both sets of standards, the shape of the uprights either side of the side door varied between builders: either curved to meet the lower ends of the diagonals, which I refer to as "hockey stick", or straight and not meet the diagonals at all.

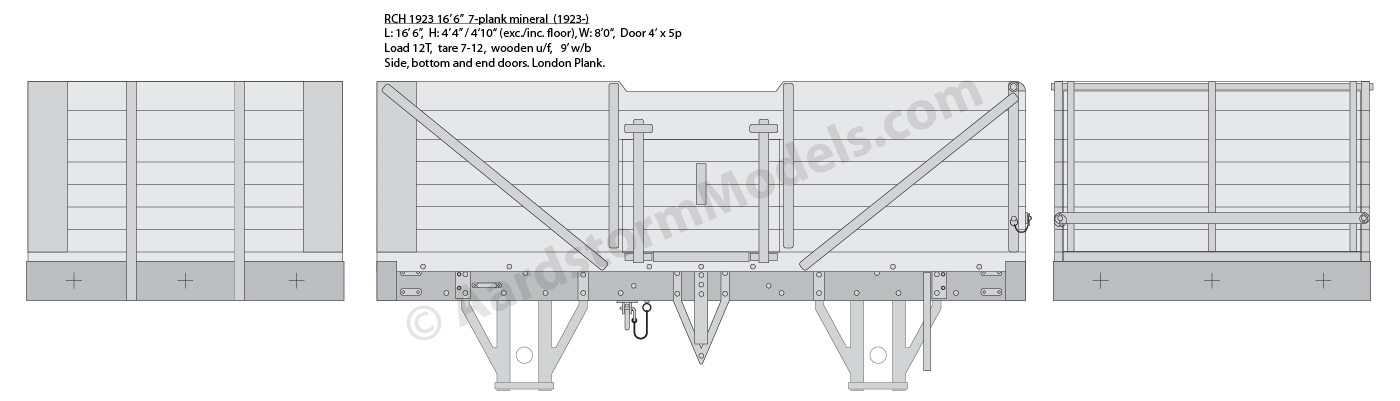

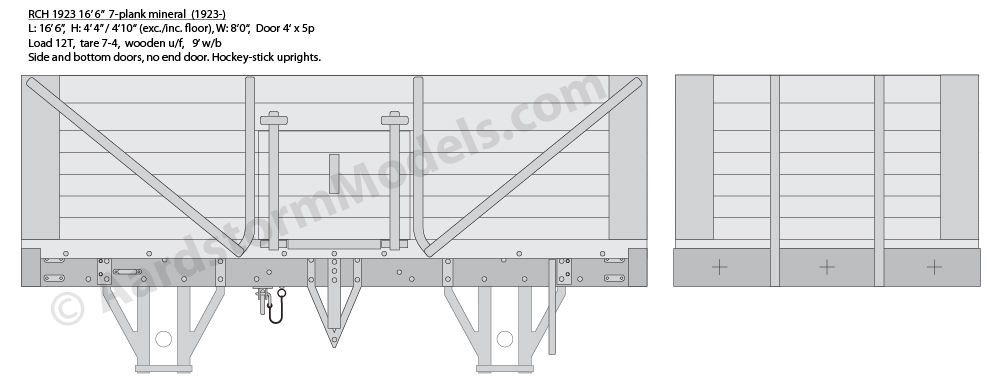

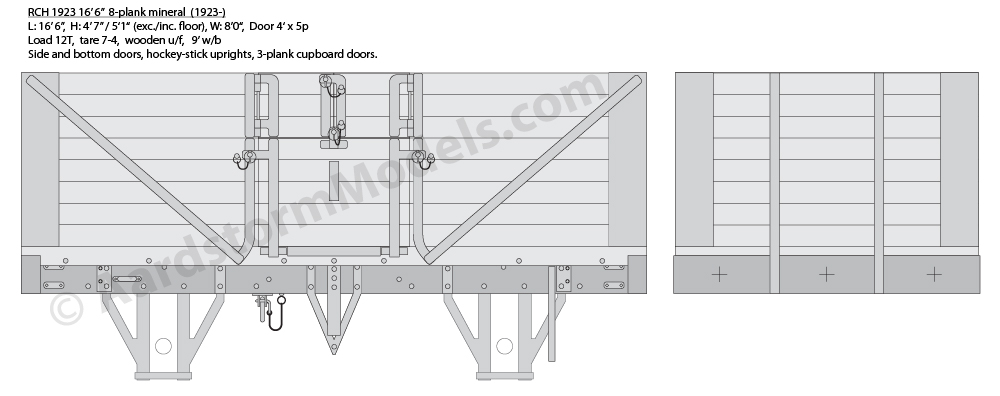

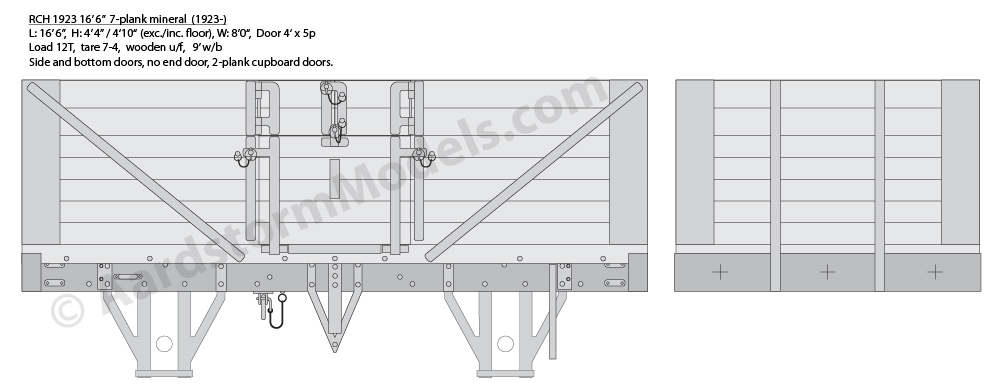

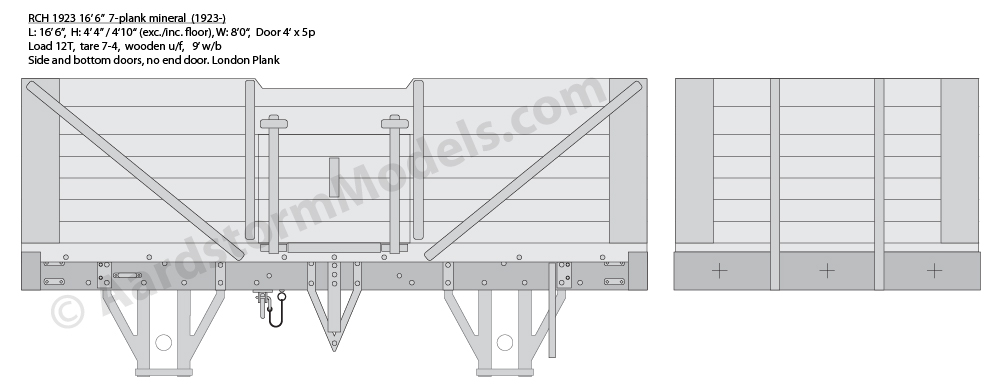

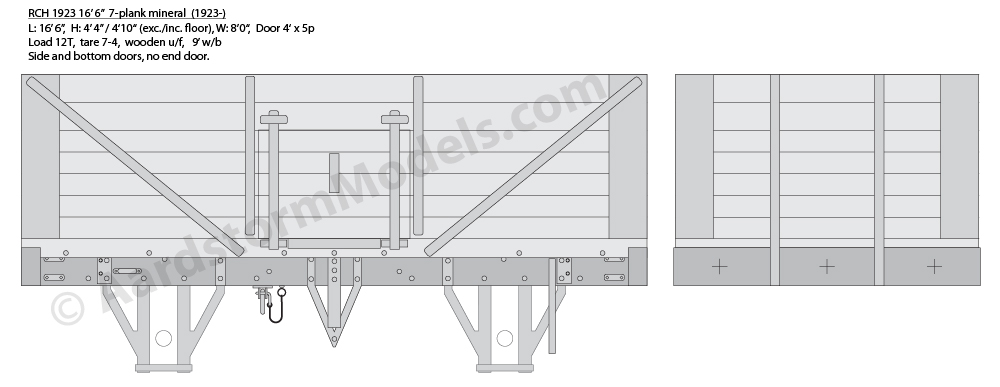

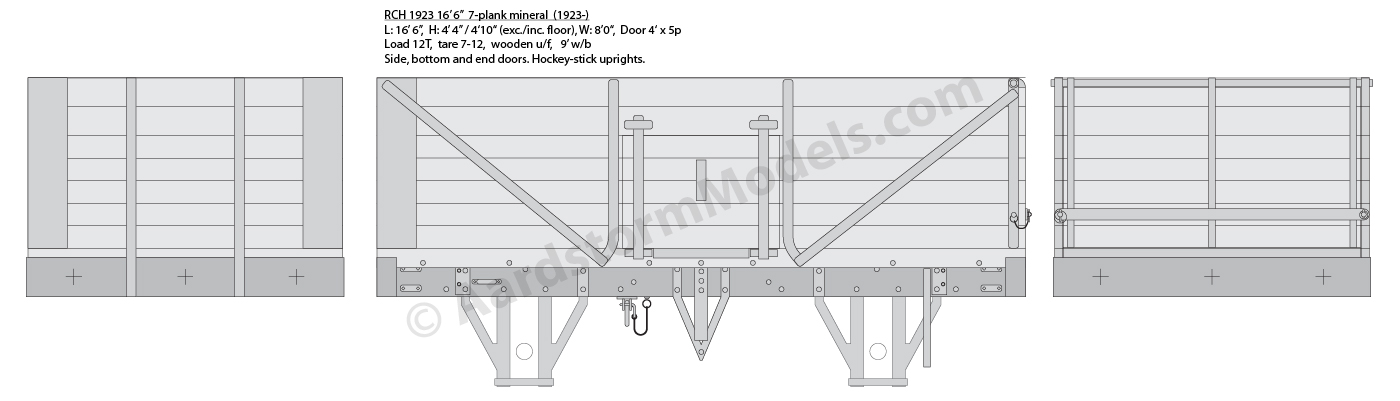

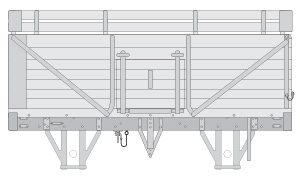

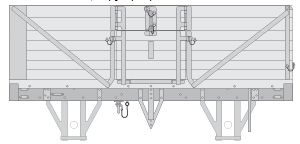

The 1923 standard was also subject to variations above the side doors: the height of the top plank was reduced above the door (known as teh "London plank", or various heights of side-hinged "cupboard" doors were fitted. Both of these arrangements were mainly used for traders in the London area, or collieries that served it, where there was an agreement between the trade unions and traders regarding the maximum height of a wagon side above the door

I've included separate drawings for these major variations under the guise of the RCH standard. Although not covered by the RCH specification, I've also included drawings for coke wagons based on the 1923 RCH design of main body; there was less variation between builders for the later standard than for the earlier one (which will be covered by drawings for individual builders).

Filter wagon builder:

Filter wagon type:

Filter wagon height (no. of planks):

Filter wagon load weight:

Filter wagon length (over headstocks):

Birmingham RCW 16' 5-plank open

 Builder: Birmingham RCW Year: 1910s
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 16' Width: Unknown
Height (exc / inc curb rail): 3'0 / 3'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 6-7-1

Notes:

Birmingham RCW 15' 6-plank mineral

 Builder: Birmingham RCW Year: 1900s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: Internal
Length: 15' Width: Unknown
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 8-5-10

Notes:

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-5

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-5

Notes:

Charles Roberts 16'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16'6 Width: 7'9
Height (exc / inc curb rail): 4'3 / 4'9 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

Charles Roberts 16'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16'6 Width: 7'9
Height (exc / inc curb rail): 4'3 / 4'9 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

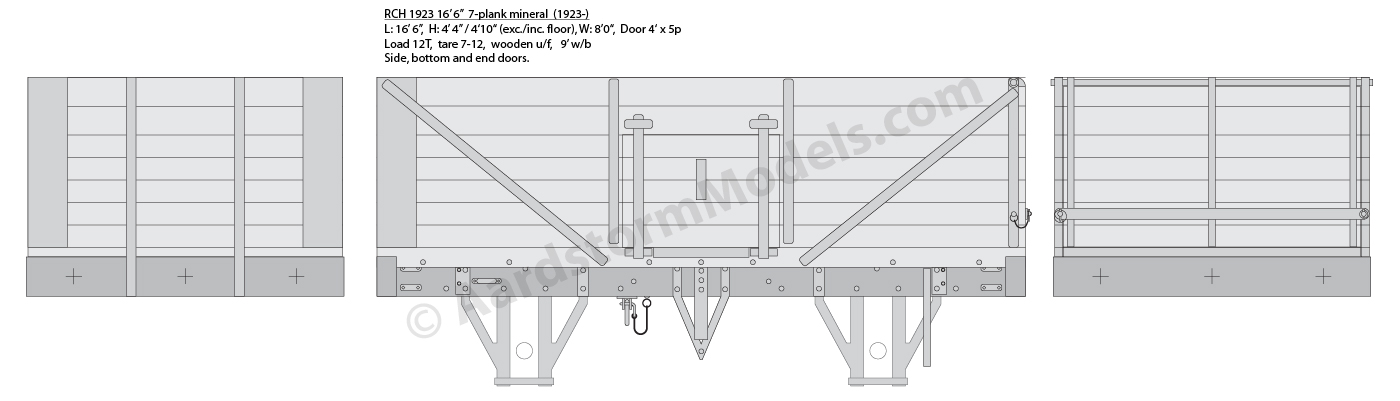

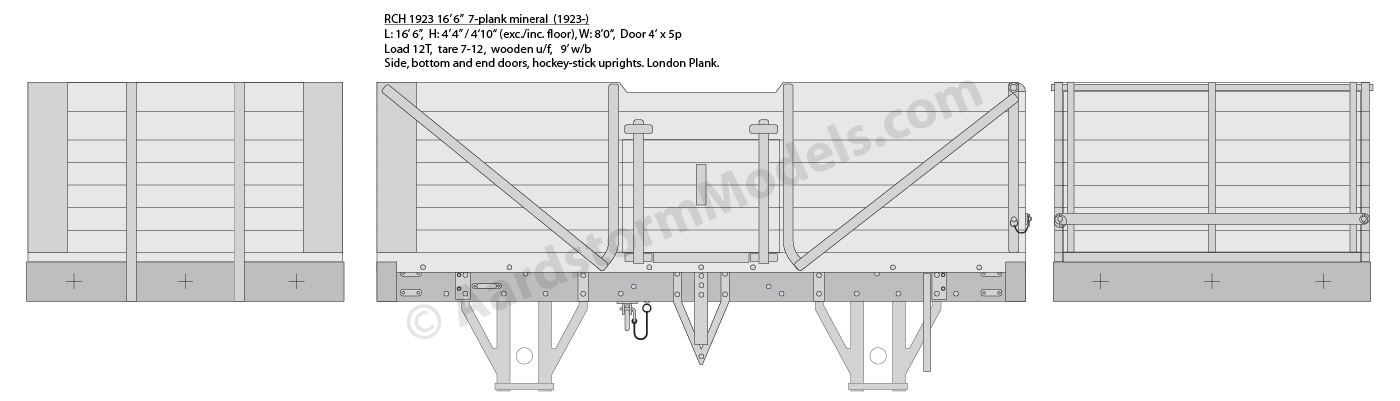

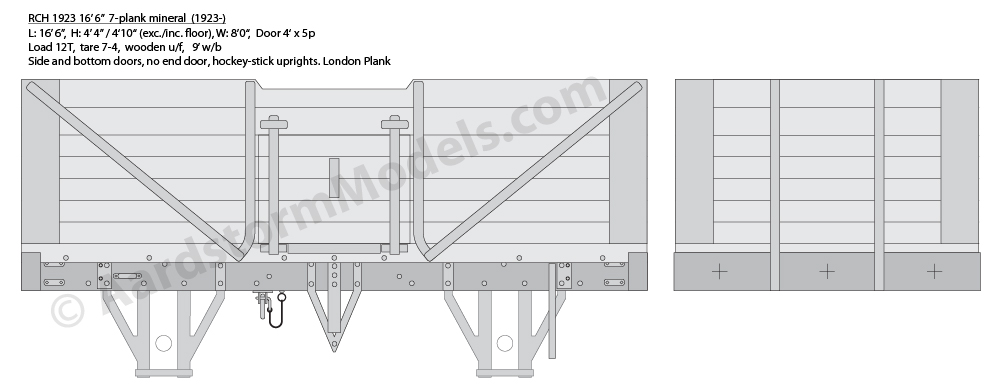

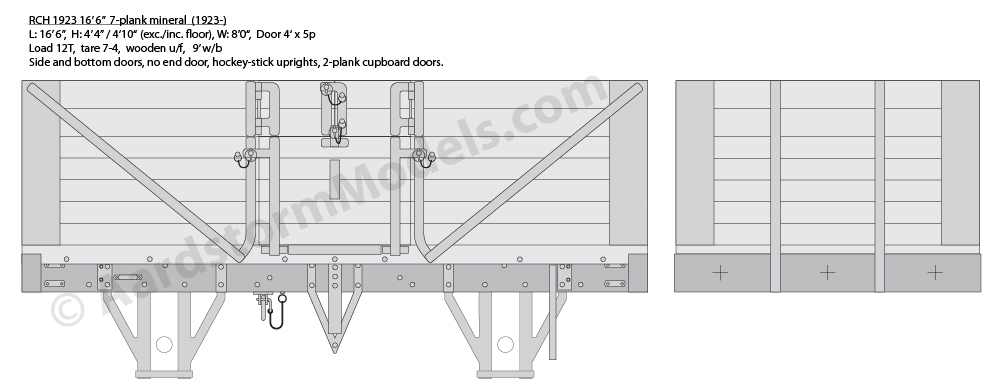

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design

Charles Roberts 16 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16' Width: 7'4
Height (exc / inc curb rail): 4'6 / 5' Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16' Width: 7'4
Height (exc / inc curb rail): 4'6 / 5' Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16'6 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: RCH design

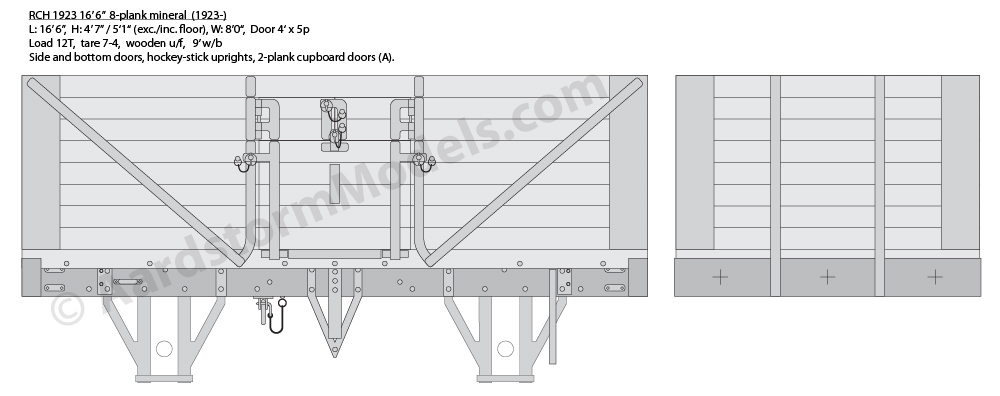

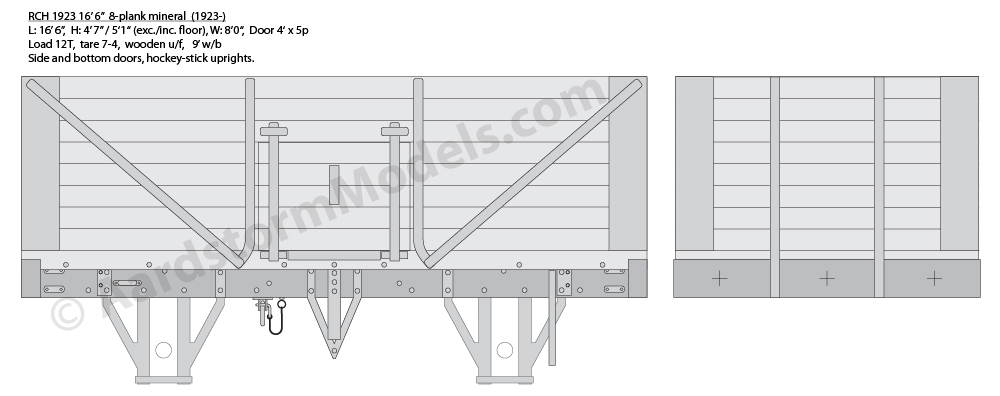

Charles Roberts 16'6 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: RCH design

Gloucester RCW 15' 5-plank mineral

 Builder: Gloucester RCW Year: 1890s
Type: Mineral End Door: No
Height (planks): 5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 5-15

Notes:

Gloucester RCW 16' 5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 5 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-19

Notes: Slightly raised ends with rounded top corners

Gloucester RCW 15' 5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 5-15

Notes:

Gloucester RCW 15' 5-plank open

 Builder: Gloucester RCW Year: 1890s
Type: Open End Door: No
Height (planks): 5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 5-15

Notes:

Gloucester RCW 16' 5-plank open

 Builder: Gloucester RCW Year: 1910s
Type: Open End Door: No
Height (planks): 5 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-19

Notes: Slightly raised ends with rounded top corners

Gloucester RCW 15' 6.5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 6.5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-5

Notes: Lifting section over side door

Gloucester RCW 16' 6.5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 6.5 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-7

Notes: Lifting section over side door

Gloucester RCW 15' 6-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'9 / 4'3 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Gloucester RCW 15' 6-plank mineral

 Builder: Gloucester RCW Year: 1890s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'8 / 3'11 Side Door (w x ht): 4'0 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-17-1

Notes:

Gloucester RCW 15'6 6-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 3 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-0

Notes:

Gloucester RCW 15'6 6-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 3 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-0

Notes:

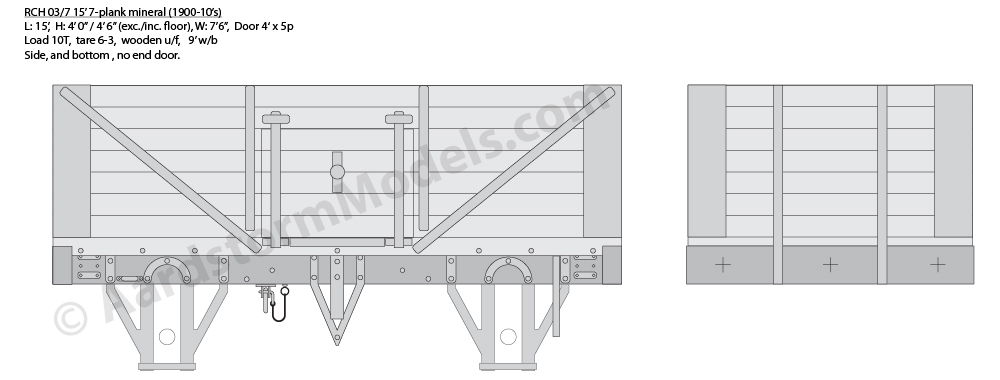

Gloucester RCW 15' 7-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-17

Notes:

Gloucester RCW 15'6 7-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 15'6 Width: 7'10
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-6

Notes:

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-9

Notes:

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-3

Notes:

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s-20s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'10
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-18

Notes:

Gloucester RCW 16'6 7-plank mineral

 Builder: Gloucester RCW Year: 1930s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design?

Gloucester RCW 15' 7-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-1

Notes:

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-1

Notes:

Gloucester RCW 15'6 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 15'6 Width: 7'10
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-6

Notes:

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-1

Notes:

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s-20s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'10
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-0

Notes:

Gloucester RCW 16'6 7-plank mineral

 Builder: Gloucester RCW Year: 1930s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-3

Notes: RCH design?

LMS 5-plank open diagram 1666

 Builder: LMS Year: 1923-30
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'0 / 3'6 Side Door (w x ht): 4'9 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-12

Notes:

LMS 5-plank open diagram 1667

 Builder: LMS Year: 1924-8
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'0 / 3'3 Side Door (w x ht): 4'9 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-14

Notes:

LMS 7-plank mineral diagram 1671

 Builder: LMS Year: 1924-40
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-3

Notes: RCH design

LMS 7-plank mineral diagram 2061

 Builder: LMS Year: 1928
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 13T Tare Weight (typ.): 7-3

Notes:

LMS 7-plank mineral diagram 2102

 Builder: LMS Year: 1946-7
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 13T Tare Weight (typ.): 7-6

Notes:

LNER 5-plank open diagram 2

 Builder: LNER Year: 1923-4
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'0 / 3'6 Side Door (w x ht): 5' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T/13T Tare Weight (typ.): 6-14

Notes:

LNER 5-plank open diagram 3

 Builder: LNER Year: 1923-8
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'4.5 / 3'10.5 Side Door (w x ht): 4'9 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes: Tilted bottom door plank. Diagram 4 identical but vac. fitted.

LNER 6-plank mineral diagram 9

 Builder: LNER Year: 1923-4
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'1.5 / 4'7.5 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes:

LNER 7-plank mineral diagram 10

 Builder: LNER Year: 1923-40
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design. Diagram 63 identical but no bottom doors.

LNER 5-plank open diagram 128

 Builder: LNER Year: 1924
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'2 / 3'5 Side Door (w x ht): 5' x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 12T/13T Tare Weight (typ.): Unknown

Notes:

LNER 8-plank mineral diagram 192

 Builder: LNER Year: 1944
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'5.5 / 4'8.5 Side Door (w x ht): 4' x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 13T Tare Weight (typ.): 6-7

Notes: Built by SR.

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1900s-10s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-15

Notes:

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1900s-10s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-15

Notes:

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1920s-30s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

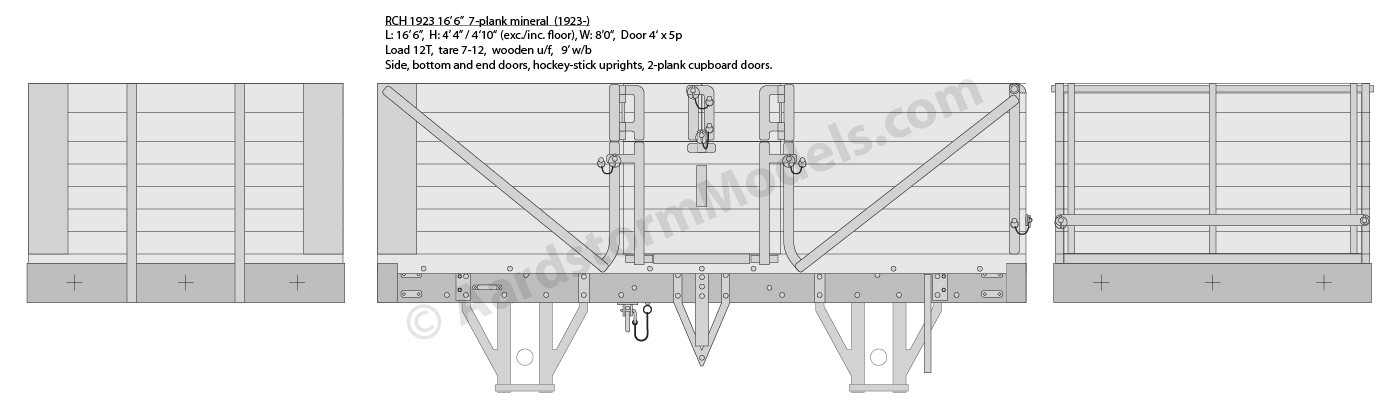

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1920s-30s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

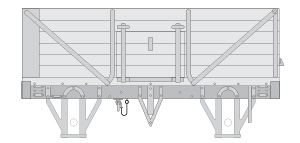

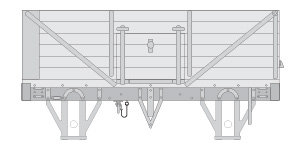

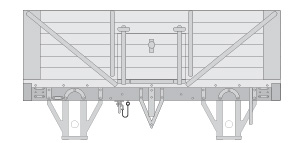

RCH 1906 15' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-3

Notes:

RCH 1906 15' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-3

Notes: Hockey stick uprights

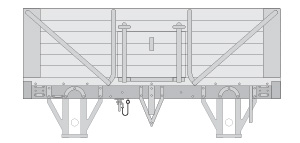

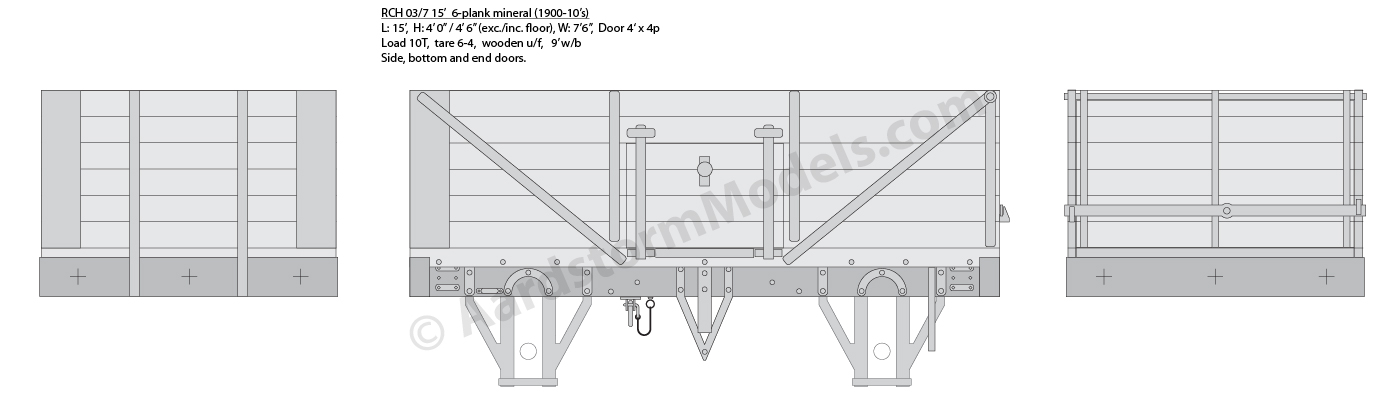

RCH 1906 15' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-4

Notes:

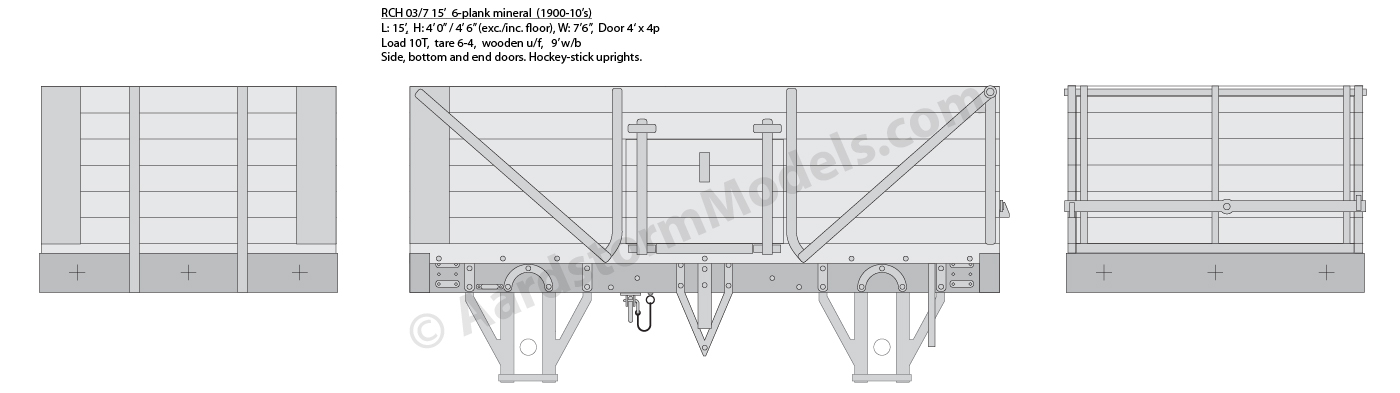

RCH 1906 15' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-4

Notes: Hockey stick uprights

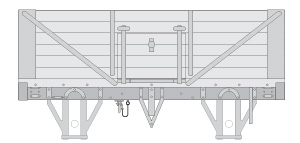

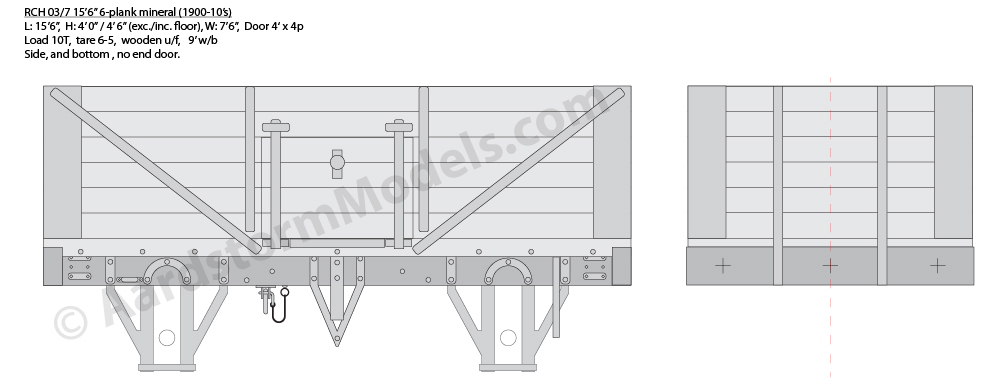

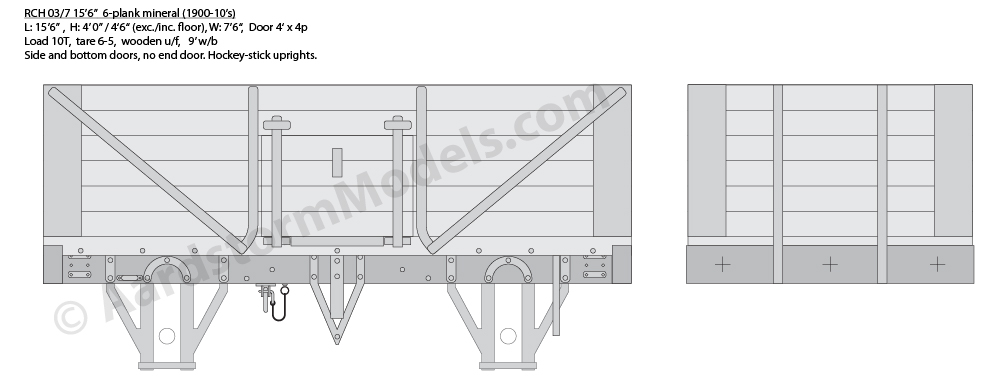

RCH 1906 15'6 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-5

Notes:

RCH 1906 15'6 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-5

Notes: Hockey stick uprights

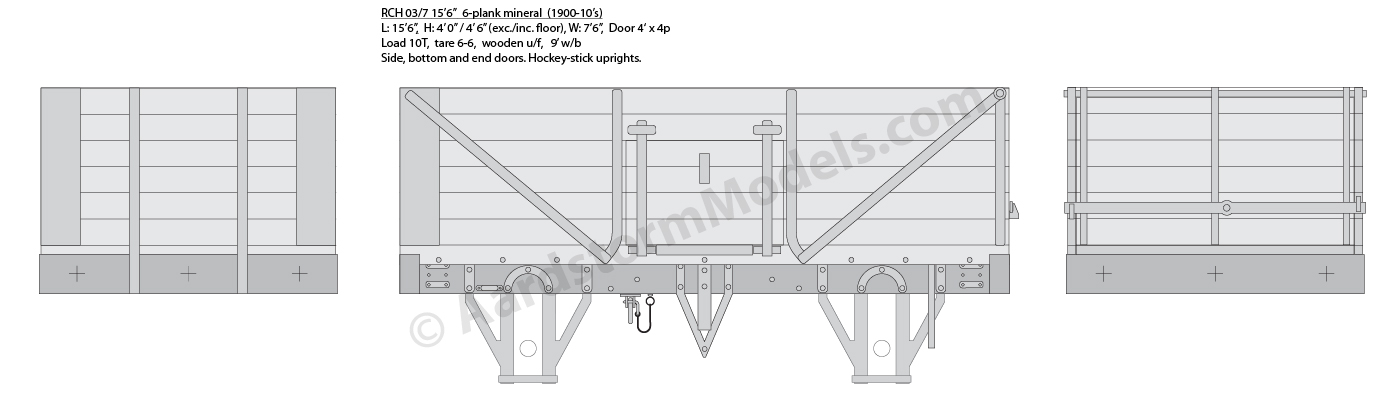

RCH 1906 15'6 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-6

Notes:

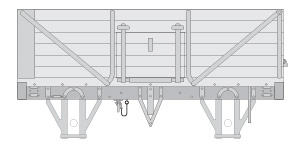

RCH 1906 15'6 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-6

Notes: Hockey stick uprights

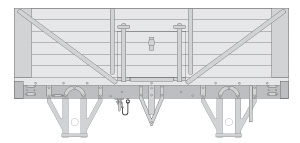

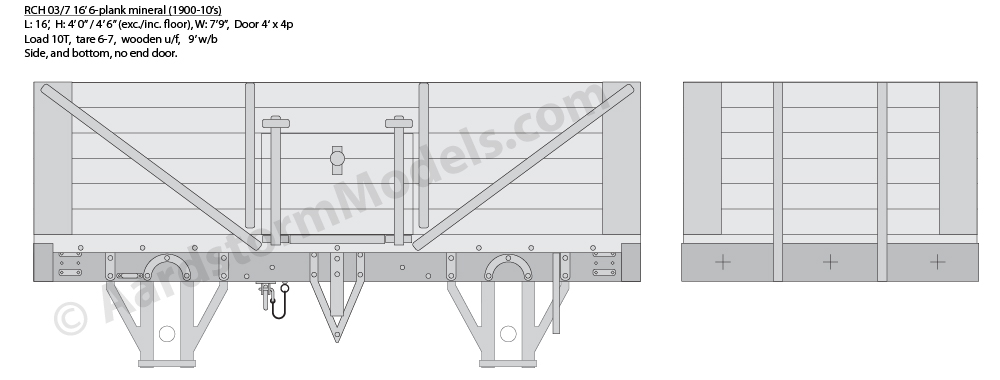

RCH 1906 16' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-7

Notes:

RCH 1906 16' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-7

Notes: Hockey stick uprights

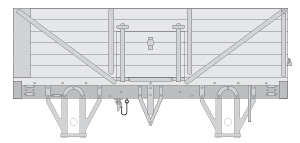

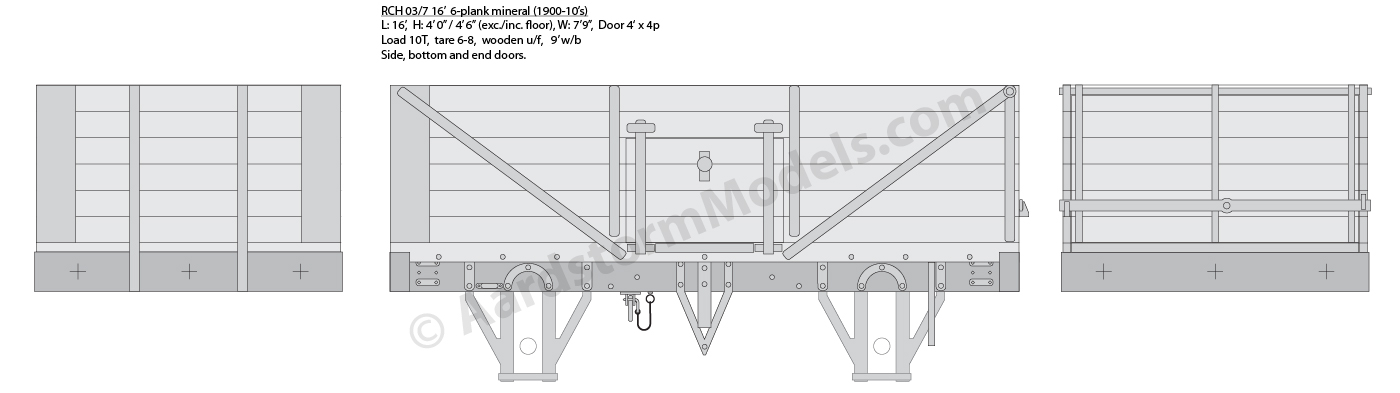

RCH 1906 16' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-8

Notes:

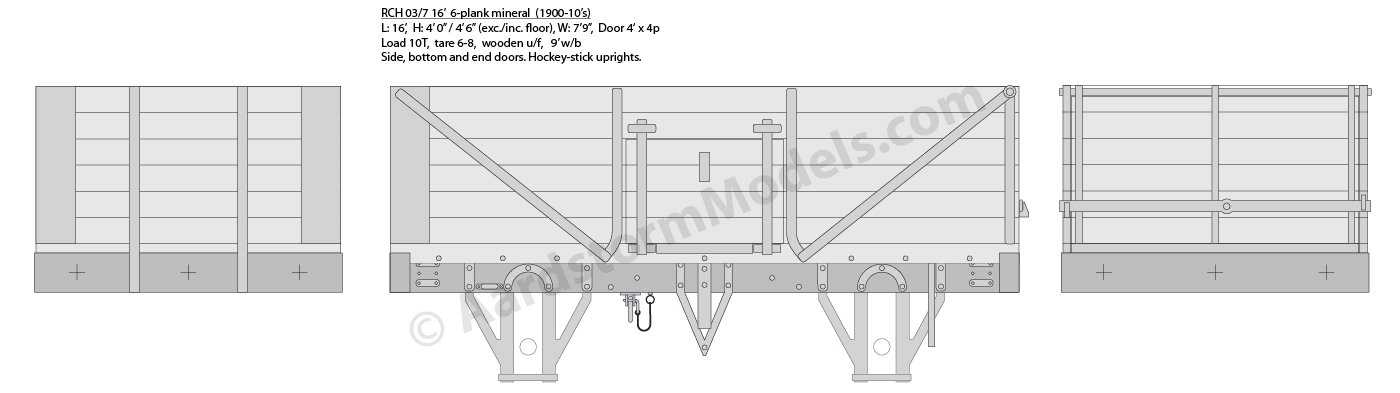

RCH 1906 16' 6-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-8

Notes: Hockey stick uprights

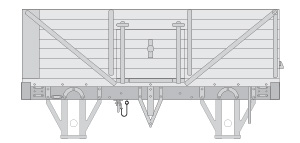

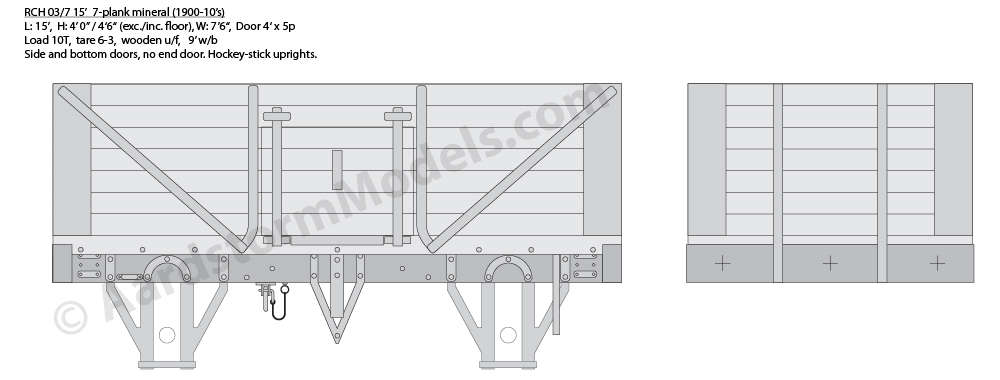

RCH 1906 15' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-3

Notes:

RCH 1906 15' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-3

Notes: Hockey stick uprights

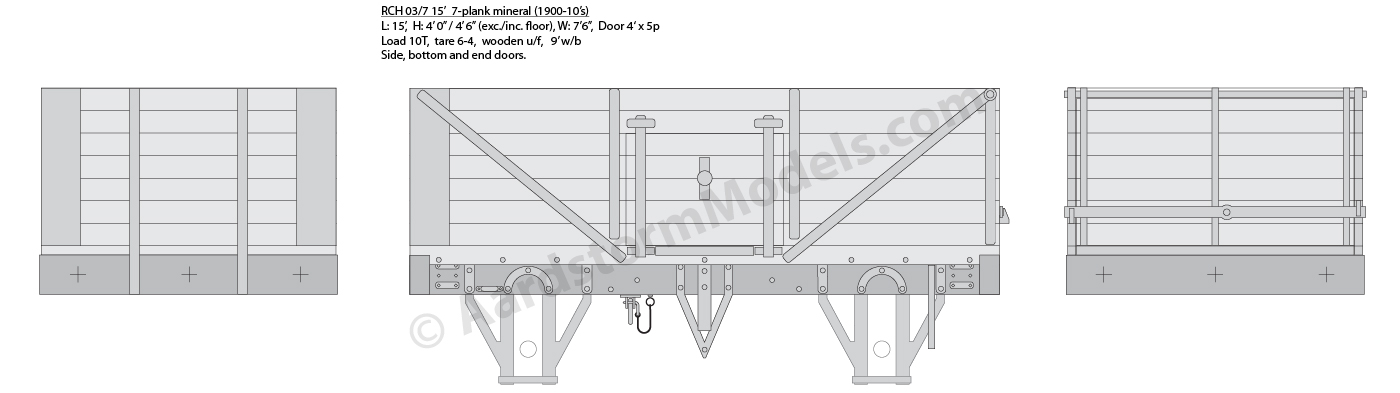

RCH 1906 15' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-4

Notes:

RCH 1906 15' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-4

Notes: Hockey stick uprights

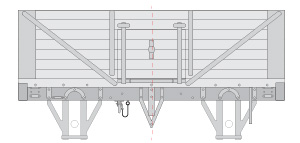

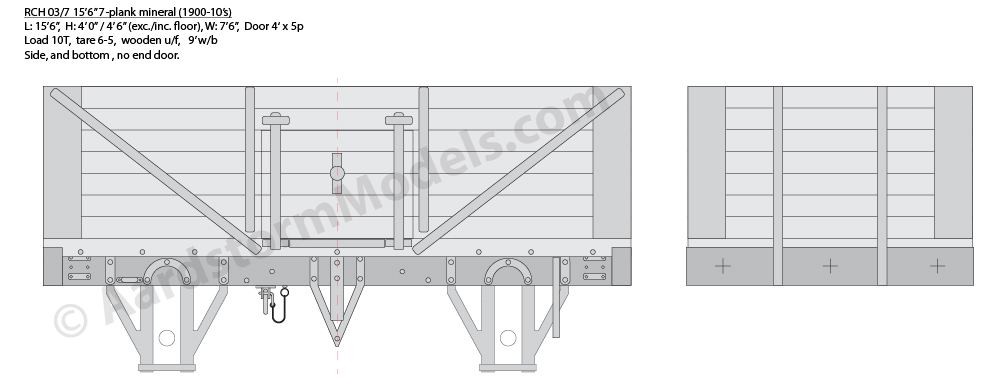

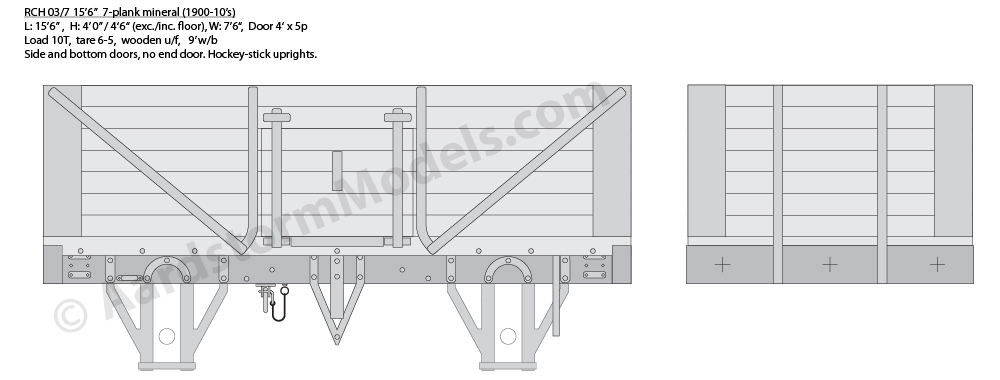

RCH 1906 15'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-5

Notes:

RCH 1906 15'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-5

Notes: Hockey stick uprights

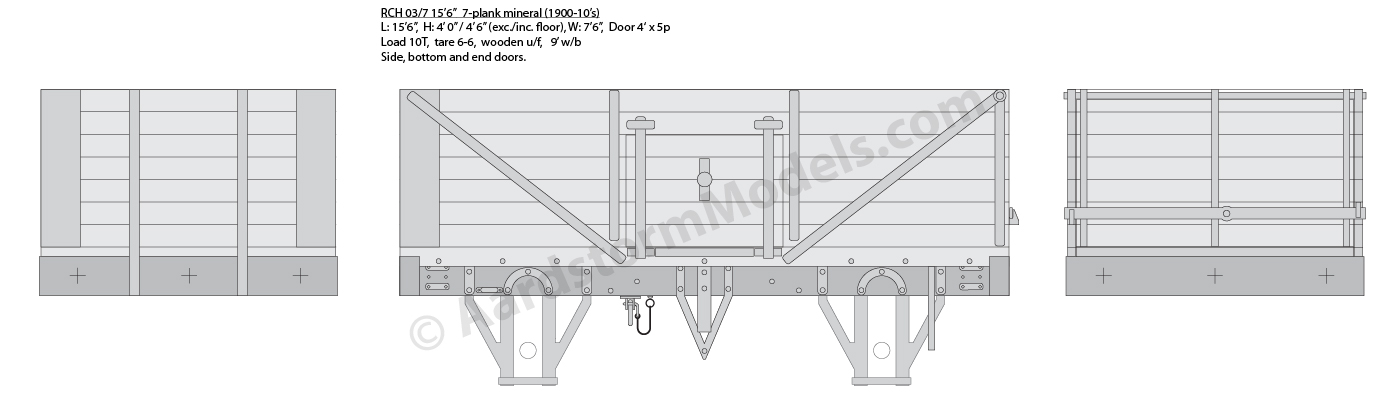

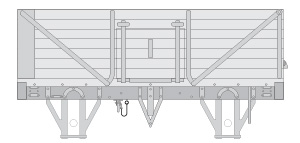

RCH 1906 15'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-6

Notes:

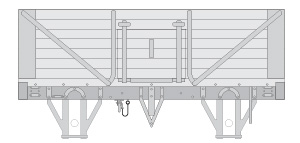

RCH 1906 15'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-6

Notes: Hockey stick uprights

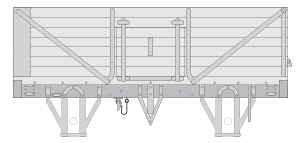

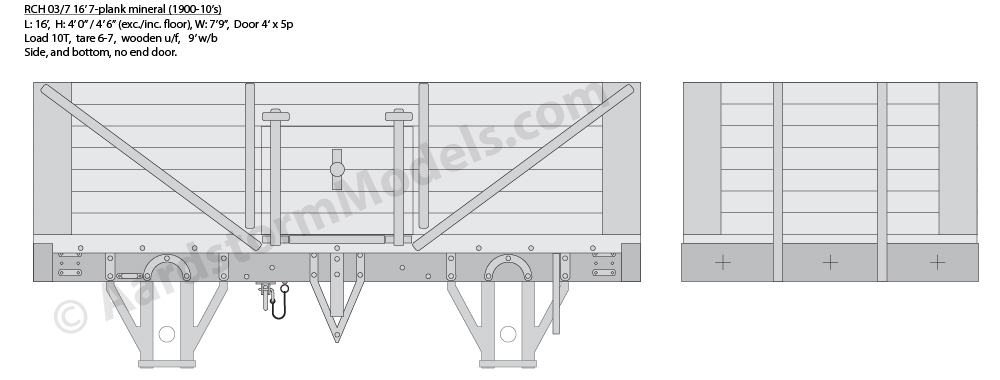

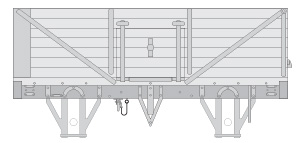

RCH 1906 16' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-7

Notes:

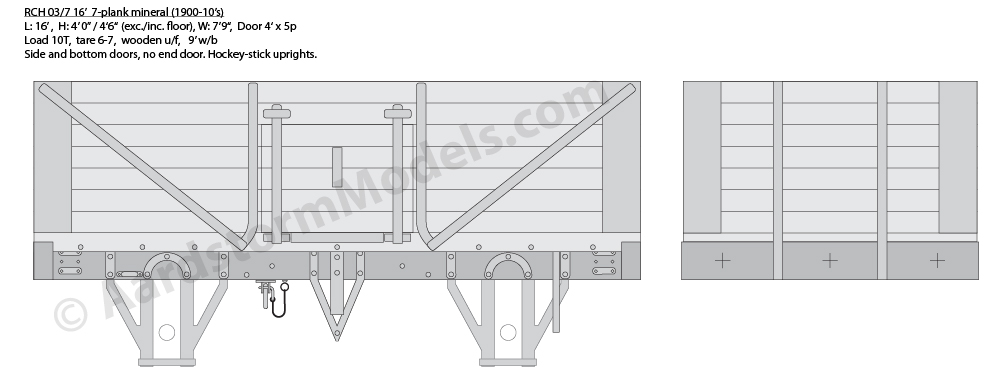

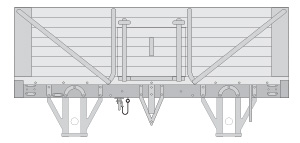

RCH 1906 16' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-7

Notes: Hockey stick uprights

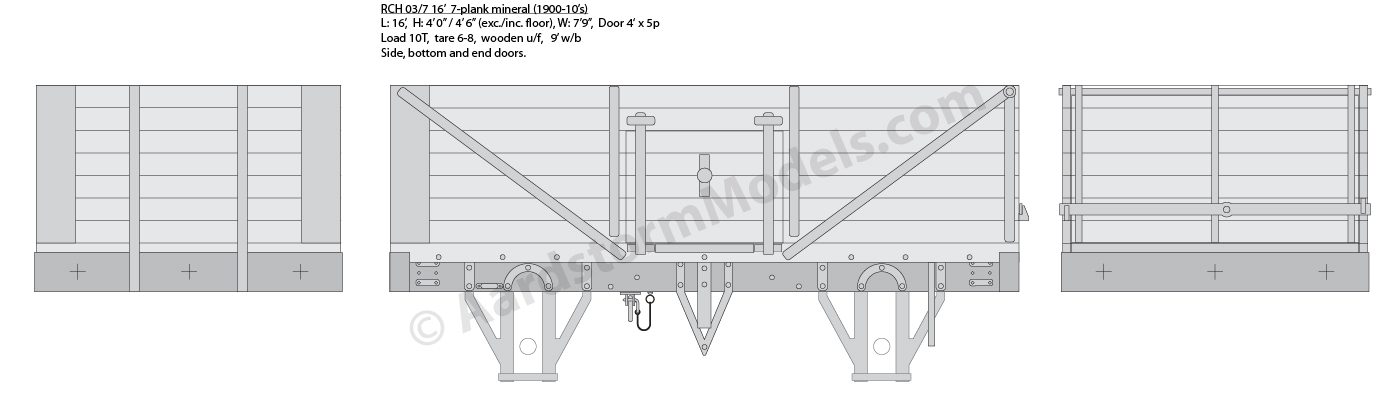

RCH 1906 16' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-8

Notes:

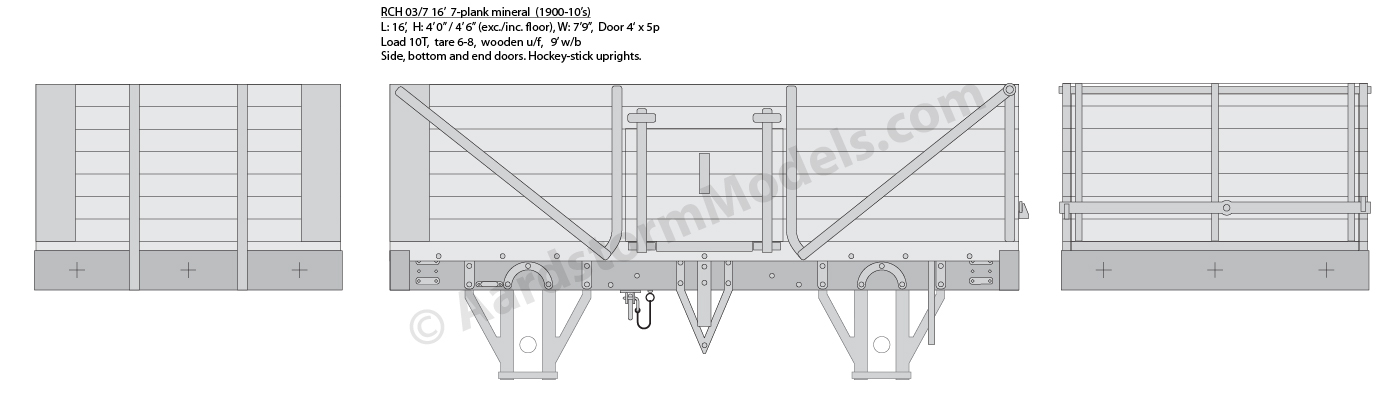

RCH 1906 16' 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-8

Notes: Hockey stick uprights

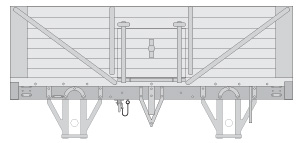

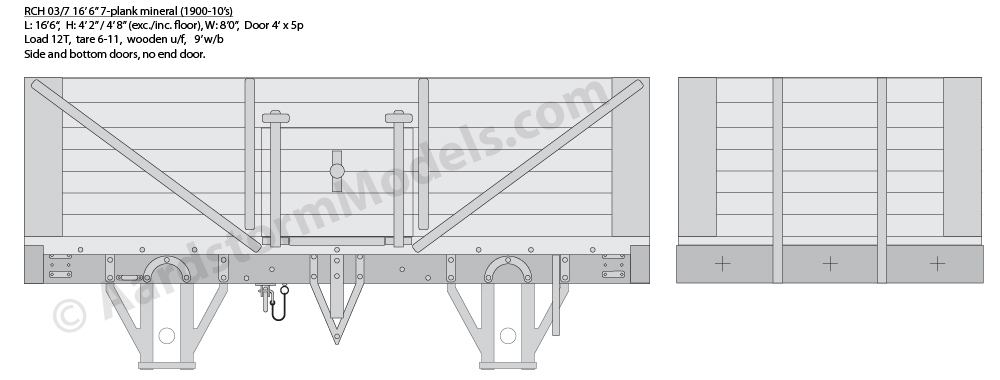

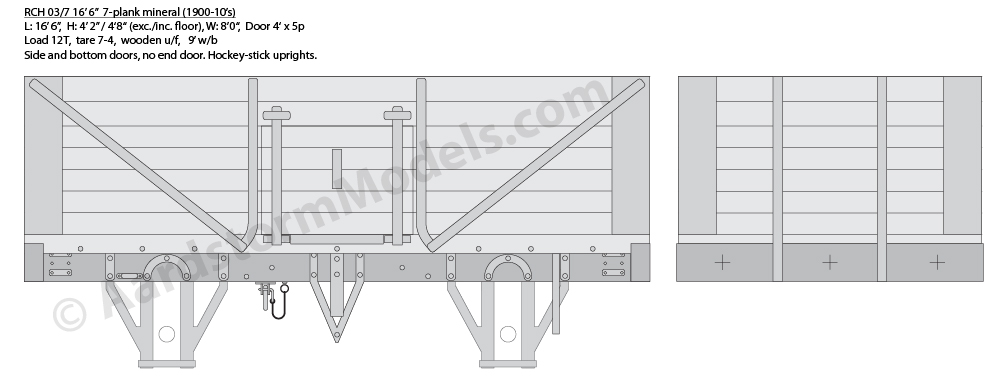

RCH 1906 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

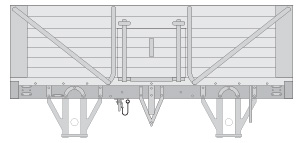

RCH 1906 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes: Hockey stick uprights

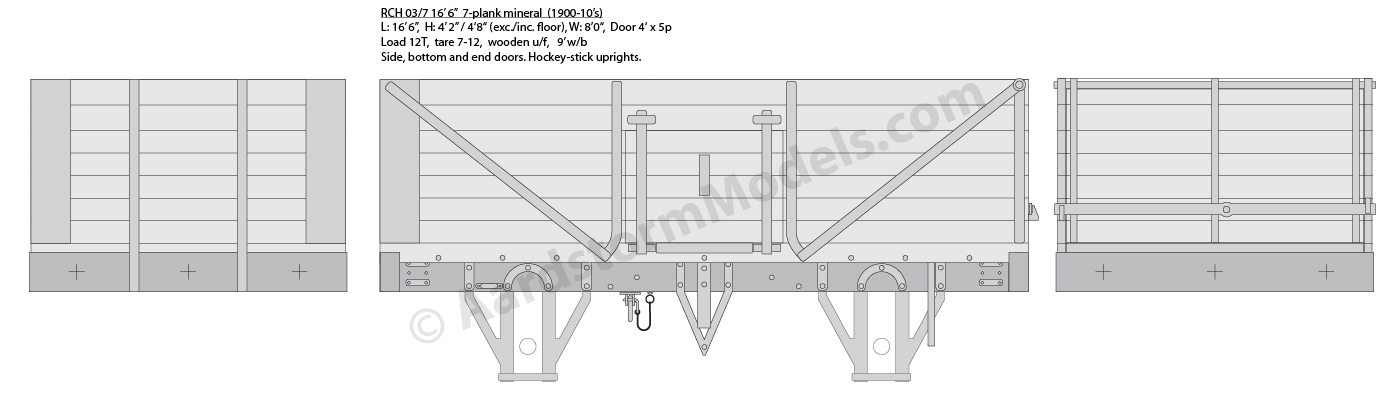

RCH 1906 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

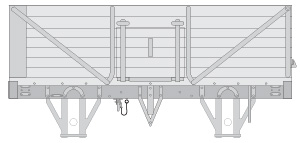

RCH 1906 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes: Hockey stick uprights

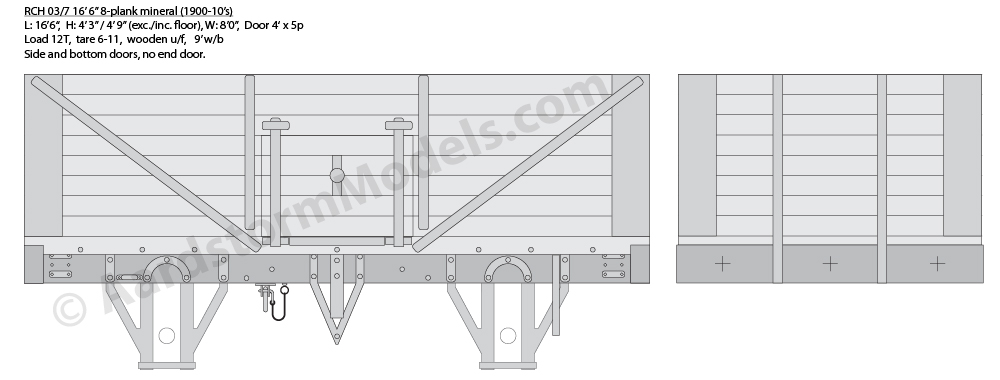

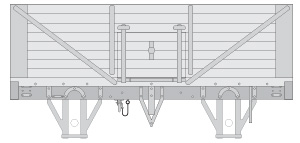

RCH 1906 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

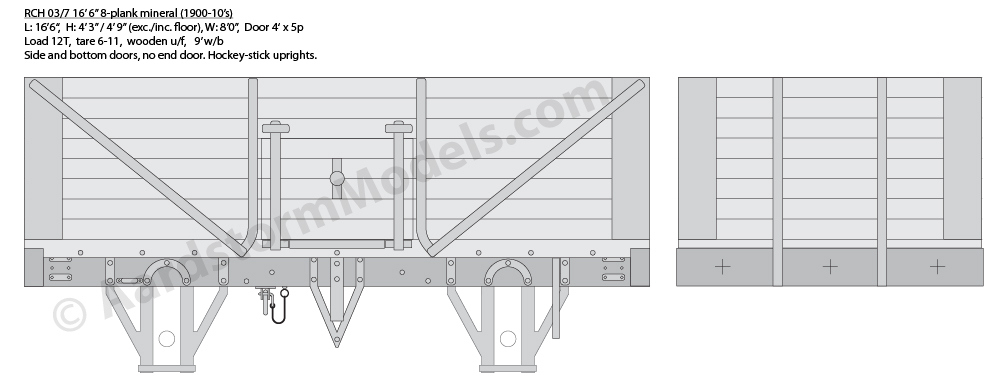

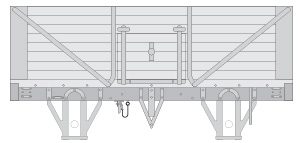

RCH 1906 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes: Hockey stick uprights

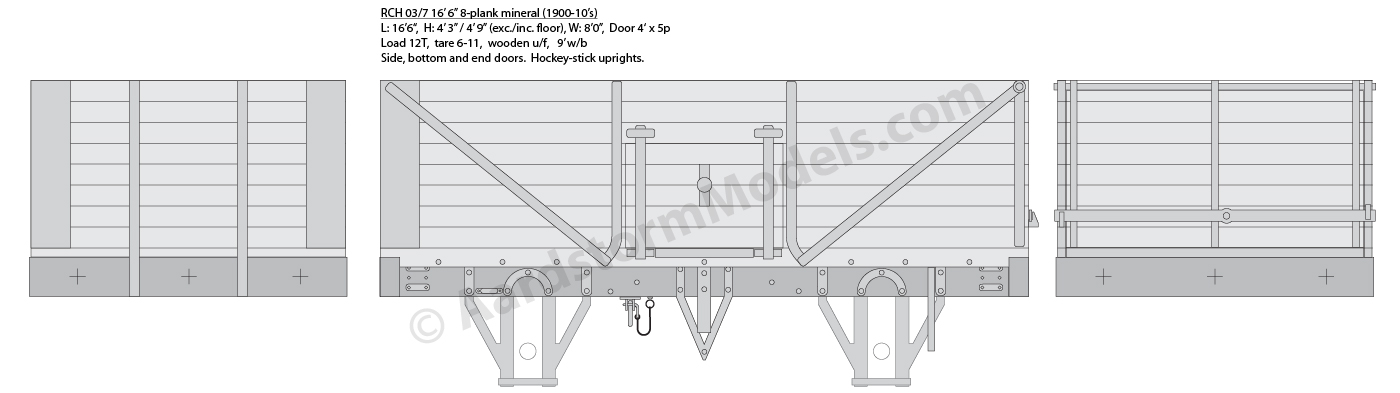

RCH 1906 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

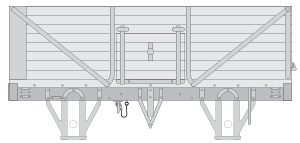

RCH 1906 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes: Hockey stick uprights

RCH 1903 17'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1903-23
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 17'6 Width: 8'0
Height (exc / inc curb rail): 4'5 / 4'11 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'6
Load Weight: 15T Tare Weight (typ.): 6-12

Notes: Optional hockey stick uprights.

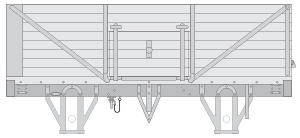

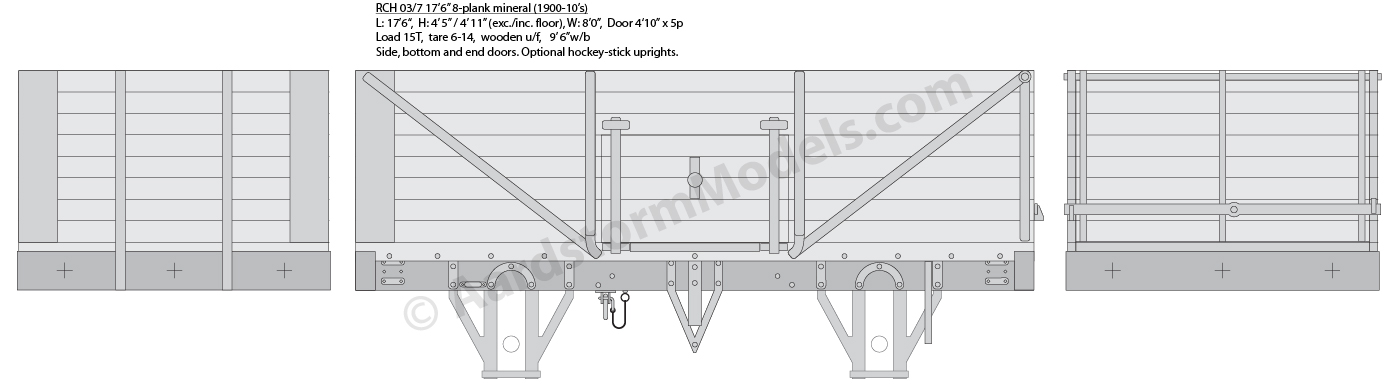

RCH 1903 17'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1903-23
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 17'6 Width: 8'0
Height (exc / inc curb rail): 4'5 / 4'11 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'6
Load Weight: 15T Tare Weight (typ.): 6-14

Notes: Optional hockey stick uprights.

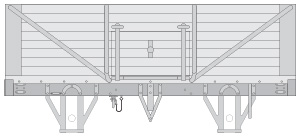

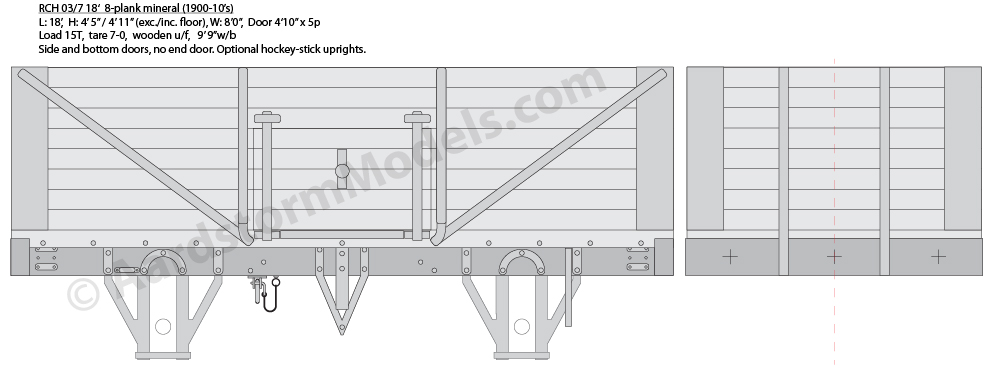

RCH 1903 18' 8-plank mineral

 Builder: RCH Standard, various builders Year: 1903-23
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 18' Width: 8'0
Height (exc / inc curb rail): 4'5 / 4'11 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'9
Load Weight: 15T Tare Weight (typ.): 7-0

Notes: Optional hockey stick uprights.

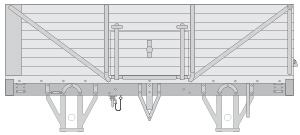

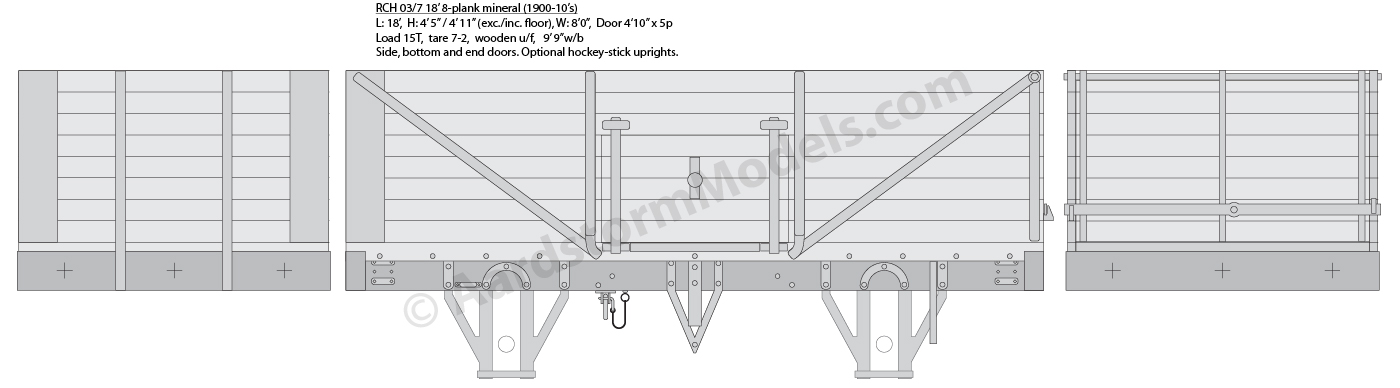

RCH 1903 18' 8-plank mineral

 Builder: RCH Standard, various builders Year: 1903-23
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 18' Width: 8'0
Height (exc / inc curb rail): 4'5 / 4'11 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'9
Load Weight: 15T Tare Weight (typ.): 7-2

Notes: Optional hockey stick uprights.

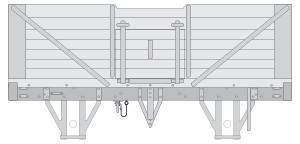

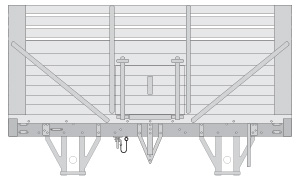

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes:

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: Hockey stick uprights

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes:

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: Hockey stick uprights

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: London plank.

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: London plank. Hockey stick uprights

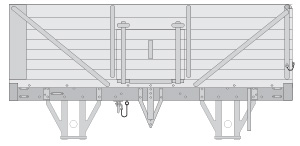

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: London plank.

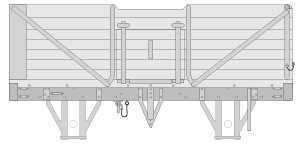

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: London plank. Hockey stick uprights

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2-plank cupboard doors

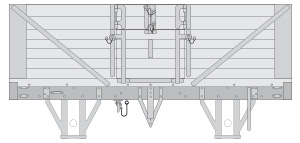

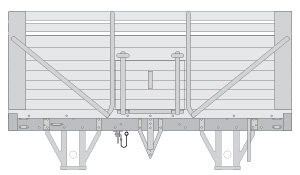

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2-plank cupboard doors. Hockey stick uprights

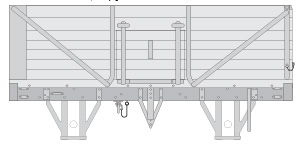

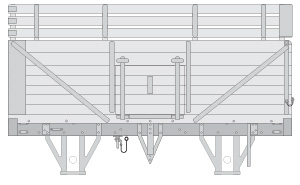

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2-plank cupboard doors

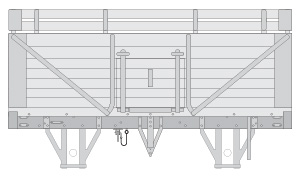

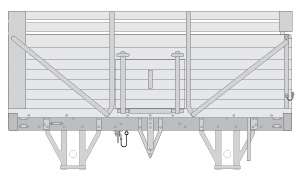

RCH 1923 16'6 7-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2-plank cupboard doors. Hockey stick uprights

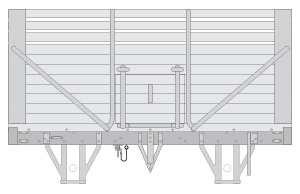

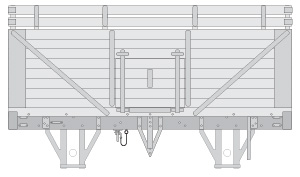

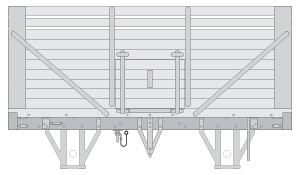

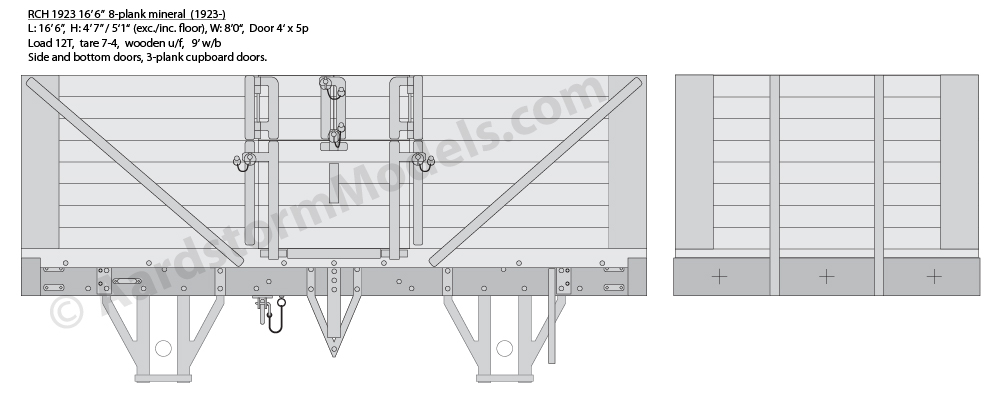

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes:

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: Hockey stick uprights

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes:

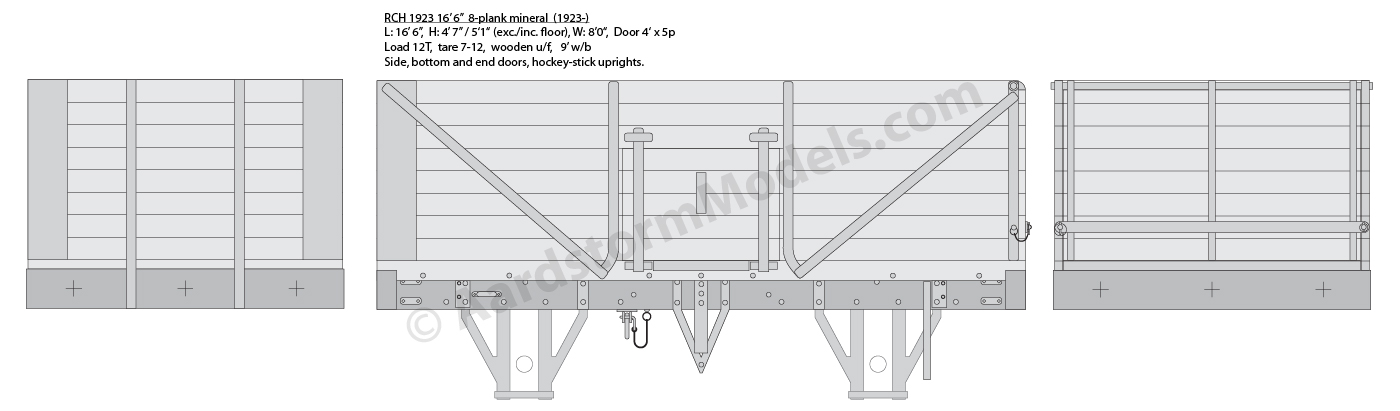

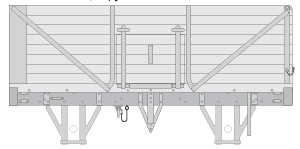

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: Hockey stick uprights

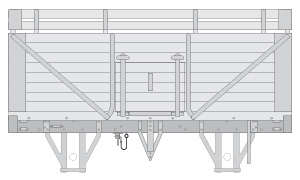

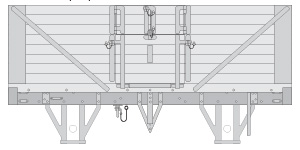

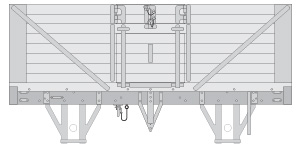

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2-plank cupboard doors, A

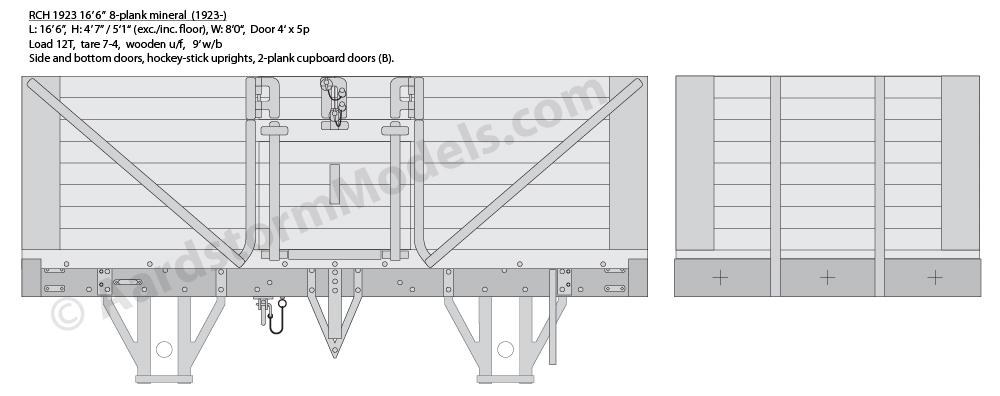

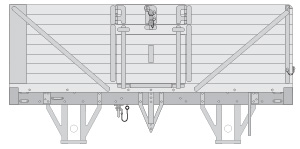

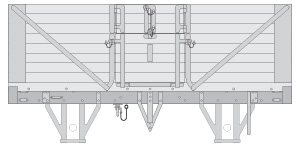

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2-plank cupboard doors, A. Hockey stick uprights

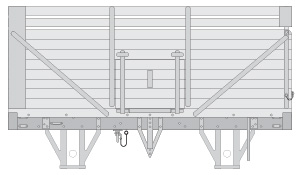

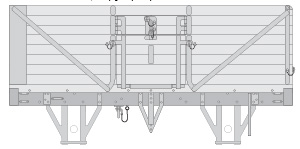

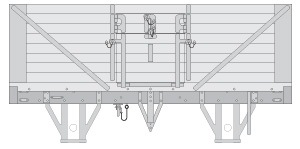

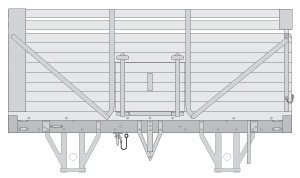

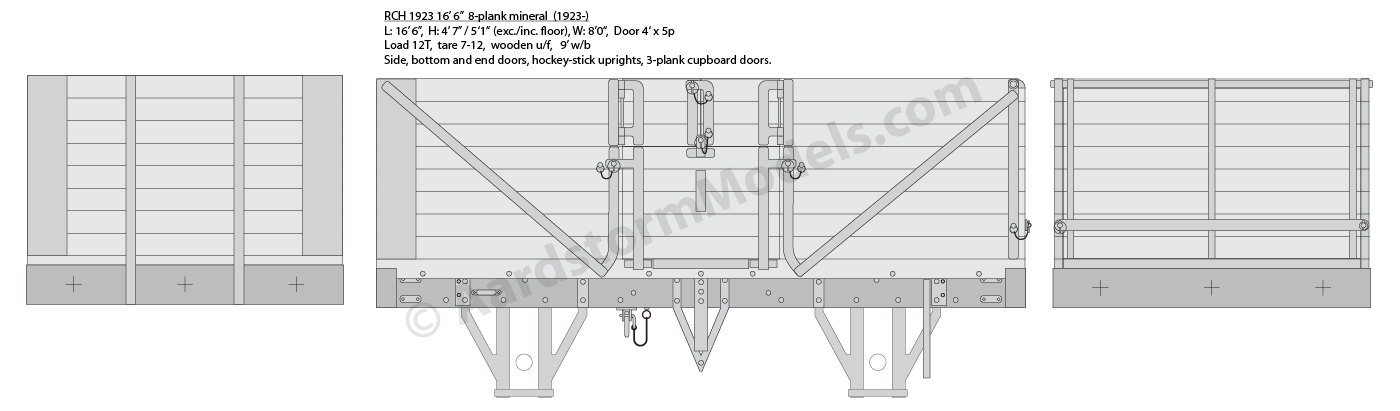

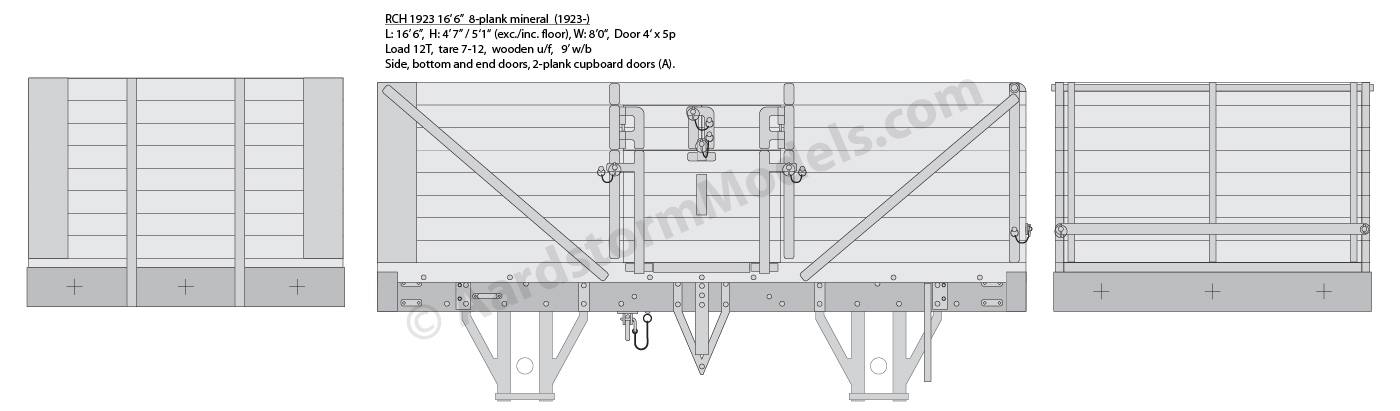

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2-plank cupboard doors, A

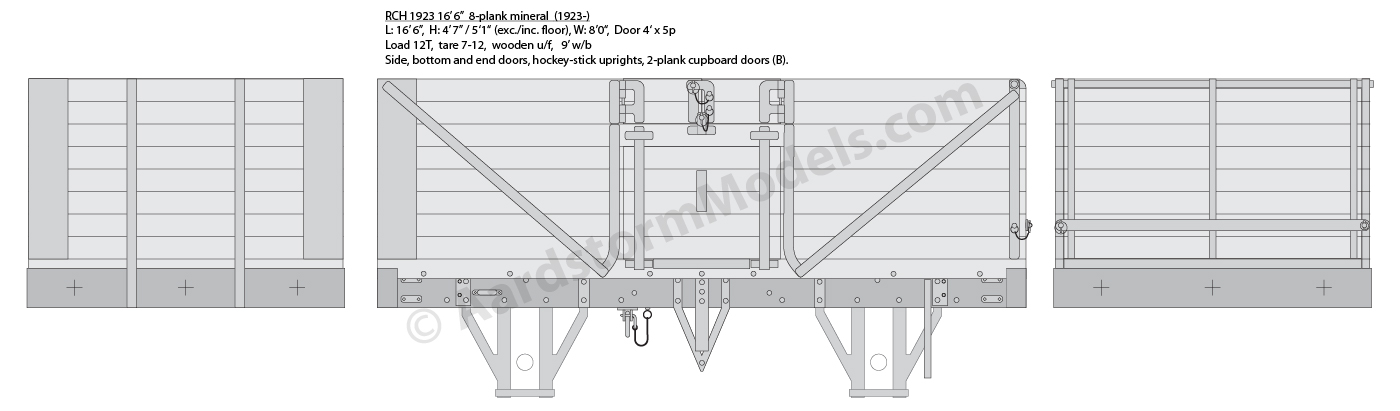

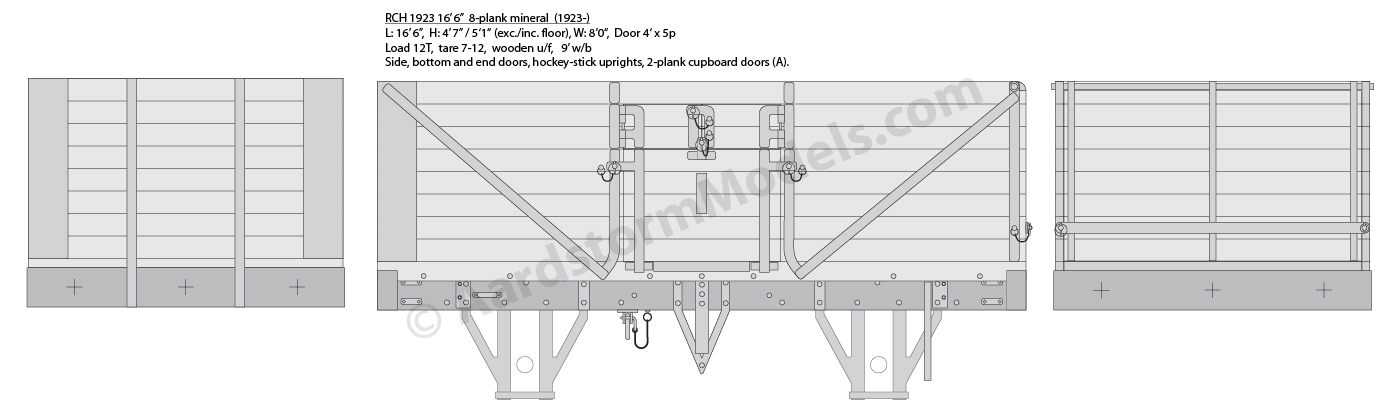

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2-plank cupboard doors, A. Hockey stick uprights

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2-plank cupboard doors, B

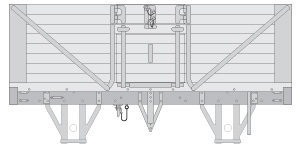

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2-plank cupboard doors, B. Hockey stick uprights

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2-plank cupboard doors, B

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2-plank cupboard doors, B. Hockey stick uprights

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 3-plank cupboard doors

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 3-plank cupboard doors. Hockey stick uprights

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 3-plank cupboard doors, A

RCH 1923 16'6 8-plank mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 3-plank cupboard doors. Hockey stick uprights

RCH 1923 16'6 7-plank+3 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: 3 x 6in raves, non-convertible.

RCH 1923 16'6 7-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: 2 x 6in raves, non-convertible, hockey stick uprights.

RCH 1923 16'6 7-plank+3 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 3 x 6in raves, non-convertible.

RCH 1923 16'6 7-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2 x 6in raves, non-convertible, hockey stick uprights.

RCH 1923 16'6 7-plank+3 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: 3 x 6in raves, convertible.

RCH 1923 16'6 7-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: 2 x 6in raves, convertible, hockey stick uprights.

RCH 1923 16'6 7-plank+3 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 3 x 6in raves, convertible.

RCH 1923 16'6 7-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2 x 6in raves, convertible, hockey stick uprights.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: 2 x 6in raves, non-convertible.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: 2 x 6in raves, non-convertible, hockey stick uprights.

RCH 1923 16'6 8-plank+3 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-15

Notes: 3 x 6in raves, non-convertible, hockey stick uprights.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2 x 6in raves, non-convertible.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2 x 6in raves, non-convertible, hockey stick uprights.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2 x 6in raves, convertible.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: 2 x 6in raves, convertible, hockey stick uprights.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2 x 6in raves, convertible.

RCH 1923 16'6 8-plank+2 coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes: 2 x 6in raves, convertible, hockey stick uprights.

RCH 1923 16'6 9-plank coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 9 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-5

Notes: Non-convertible.

RCH 1923 16'6 10-plank coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 10 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'6
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: Non-convertible, 3-plank cupboard doors.

RCH 1923 16'6 10-plank coke

 Builder: RCH Standard, various builders Year: 1923-
Type: Coke End Door: No
Height (planks): 10 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'6
Load Weight: 12T Tare Weight (typ.): 7-10

Notes: Non-convertible, 3-plank cupboard doors, hockey stick uprights.

RCH 1906 15' steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): S Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 7-3

Notes:

RCH 1906 15' steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): S Diagonals: External
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 7-5

Notes:

RCH 1906 15'6 steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): S Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 7-5

Notes:

RCH 1906 15'6 steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): S Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 7-7

Notes:

RCH 1906 16' steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): S Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 7-7

Notes:

RCH 1906 16' steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): S Diagonals: External
Length: 16' Width: 7'9
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 7-9

Notes:

RCH 1906 16'6 steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: No
Height (planks): S Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes:

RCH 1906 16'6 steel mineral

 Builder: RCH Standard, various builders Year: 1906-23
Type: Mineral End Door: Yes
Height (planks): S Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes:

RCH 1923 16'6 steel mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: No
Height (planks): S Diagonals: None
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-10

Notes:

RCH 1923 16'6 steel mineral

 Builder: RCH Standard, various builders Year: 1923-
Type: Mineral End Door: Yes
Height (planks): S Diagonals: None
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 Side Door (w x ht): 4'4 x 2'9
Underframe: Steel Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-12

Notes:

SE Stevens 16' 7-plank mineral

 Builder: SE Stevens Year: 1900s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'6
Height (exc / inc curb rail): 4'1 / 4'7 Side Door (w x ht): 4'3 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-8

Notes:

SE Stevens 16' 7-plank mineral

 Builder: SE Stevens Year: 1900s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'6
Height (exc / inc curb rail): 4'1 / 4'7 Side Door (w x ht): 4'3 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-8

Notes:

Stableford 16'6 7-plank mineral

 Builder: Stableford Carriage & Wagon Co. Year: 1920s-30s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

Stableford 16'6 7-plank mineral

 Builder: Stableford Carriage & Wagon Co. Year: 1920s-30s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

Note: Clicking on any of the images on this page, such as those above, will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up).
